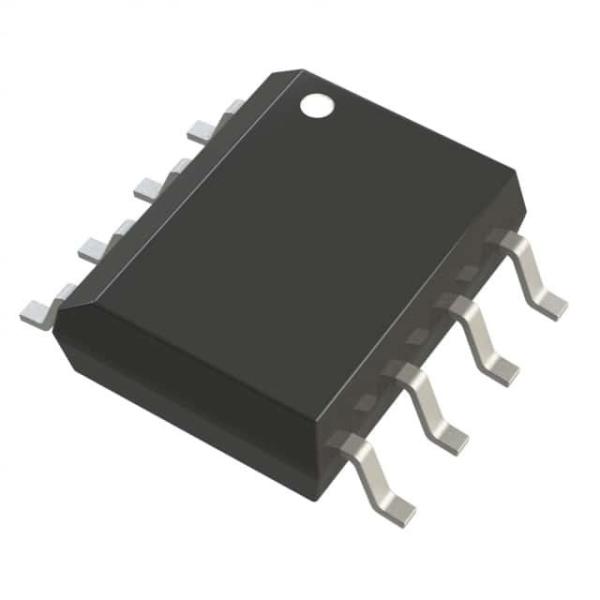

PAM2320BECADJR IC REG BUCK ADJUSTABLE 3A 8SO Diodes Incorporated

Brand Name : Diodes Incorporated

Model Number : PAM2320BECADJR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.7V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 0.6V

Voltage - Output (Max) : 5.5V

Current - Output : 3A

Frequency - Switching : 1.5MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Supplier Device Package : 8-SO-EP

Contact Now

Product Details

Description

The PAM2320 is a 3A step-down DC-DC converter. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. No external compensation components are required.

Features
• Output Current: Up to 3A
• Output Voltage: 0.6V to VIN
• Input Voltage: 2.7 to 5.5V
• Efficiency up to 95%
• 42µA (typ) No Load Quiescent Current
• Shutdown Current: <1µA
• 100% Duty Cycle Operation
• 1.5MHz Switching Frequency
• Internal Soft Start
• No external Compensation Required
• Current Limit Protection
• Thermal Shutdown
• PSOP-8 Package

Applications
• 5V or 3.3V Point of Load Conversion
• Telecom/Networking Equipment
• Set Top Boxes
• Storage Equipment
• Video Cards
• DDR Power Supply

Specifications

Attribute Attribute Value
Manufacturer Diodes Incorporated
Product Category DC Switching Regulators
Series PAM2320
Type Voltage Converter
Packaging Alternate Packaging
Mounting-Style SMD/SMT
Operating-Temperature-Range - 40 C to + 85 C
Package-Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Adjustable
Function Step-Down
Supplier-Device-Package 8-PSOP
Number-of-Outputs 1 Output
Topology Buck
Frequency-Switching 1.5MHz
Current-Output 3A
Output-Configuration Positive
Output Voltage 0.6V
Voltage-Output-Max 5.5V
Synchronous-Rectifier Yes
Voltage-Input-Min 2.7V
Voltage-Input-Max 5.5V
Shutdown Shutdown
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage Adjustable
Input-Voltage 2.7 V to 5.5 V
Input-Voltage-MAX 5.5 V
Output-Current 3 A
Switching-Frequency 1.5 MHz
Input-Voltage-MIN 2.7 V
Supply-Voltage-Min 2.7 V
Package-Case PSOP-EP-8

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.6V to 5.5V 3A 8-Pin PSOP EP T/R
Voltage Regulators - Switching Regulators 3A LO NOISE SD DC/DC CNVTR
