RT8292AHZSP IC REG BUCK ADJUSTABLE 2A 8SOP Richtek USA Inc.

Name: RT8292AHZSP IC REG BUCK ADJUSTABLE 2A 8SOP Richtek USA Inc
Brand: Richtek USA Inc.
Price: 1 USD

Brand Name : Richtek USA Inc.

Model Number : RT8292AHZSP

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 4.5V

Voltage - Input (Max) : 23V

Voltage - Output (Min/Fixed) : 0.8V

Voltage - Output (Max) : 20V

Current - Output : 2A

Frequency - Switching : 340kHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Supplier Device Package : 8-SOP-EP

Contact Now

Product Details

General Description

The RT8292A is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 2A output current from a 4.5V to 23V input supply. The RT8292As current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.

Features

● ±1.5% High Accuracy Feedback Voltage
● 4.5V to 23V Input Voltage Range
● 2A Output Current
● Integrated N-MOSFET Switches
● Current Mode Control
● Fixed Frequency Operation : 340kHz
● Output Adjustable from 0.8V to 20V
● Up to 95% Efficiency
● Programmable Soft-Start
● Stable with Low-ESR Ceramic Output Capacitors
● Cycle-by-Cycle Over Current Protection
● Input Under Voltage Lockout
● Output Under Voltage Protection
● Thermal Shutdown Protection
● RoHS Compliant and Halogen Free

Applications

● Wireless AP/Router
● Set-Top-Box
● Industrial and Commercial Low Power Systems
● LCD Monitors and TVs
● Green Electronics/Appliances
● Point of Load Regulation of High-Performance DSPs

Specifications

Attribute	Attribute Value
Manufacturer	Richtek
Product Category	IC Chips
Series	-
Packaging	Alternate Packaging
Package-Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	8-SOP-EP
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	340kHz
Current-Output	2A
Output-Configuration	Positive
Output Voltage	0.8V
Voltage-Output-Max	20V
Synchronous-Rectifier	Yes
Voltage-Input-Min	4.5V
Voltage-Input-Max	23V

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Wholesale RT8292AHZSP IC REG BUCK ADJUSTABLE 2A 8SOP Richtek USA Inc. from china suppliers

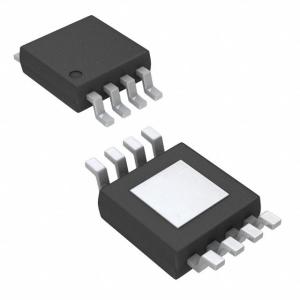

RT8292AHZSP IC REG BUCK ADJUSTABLE 2A 8SOP Richtek USA Inc. Images
