SPX5205M5-L/TR IC REG LIN POS ADJ 150MA SOT23-5 MaxLinear, Inc.

Product Categories
Sanhuang electronics (Hong Kong) Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SPX5205M5-L/TR IC REG LIN POS ADJ 150MA SOT23-5 MaxLinear, Inc.

Brand Name : MaxLinear, Inc.

Model Number : SPX5205M5-L/TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 1.235V

Voltage - Output (Max) : 15.65V

Voltage Dropout (Max) : 0.35V @ 150mA

Current - Output : 150mA

Current - Quiescent (Iq) : 5 µA

Current - Supply (Max) : 2.5 mA

PSRR : -

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

DESCRIPTION

The SPX5205 is a positive voltage regulator with very low dropout voltage, output noise and ground current
(750μA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output
voltages 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V and an adjustable version are available
in a small 5-pin SOT-23 package. Other key features include zero off-mode current, reverse battery
protection, thermal shutdown and current limit. The SPX5205 is an excellent choice for use in battery
powered applications, and where power conservation is desired such as: cellular/ cordless telephones, radio
control systems, and portable computers.

FEATURES

■ Low Noise Output LDO: 40μVRMS Possible
■ 1% Initial Accuracy
■ Very Low Quiecent Current: 70μA
■ Low Dropout Voltage (210mV at 150mA)
■ Current and Thermal Limiting
■ Reverse-Battery Protection
■ Wide Range of Fix Output Voltages:1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 5.0V
■ Zero Off-Mode Current
■ Small 5-Pin SOT-23
■ Pin Compatible to MIC5205/MAX8877 (fixed Options Only) and AS3815

APPLICATIONS

■ PDA
■ Battery Powered Systems
■ Cellular Phone
■ Cordless Telephones
■ Radio Control Systems
■ Laptop, Palmtop, and Notebook Computers
■ Portable Consumer Equipment
■ Portable Instrumentation
■ Bar Code Scanners
■ SMPS Post-Regulator

Specifications

Attribute Attribute Value
Manufacturer MaxLinear
Product Category Linear Voltage Regulators
Series SPX5205
Packaging Alternate Packaging
Unit-Weight 0.001058 oz
Mounting-Style SMD/SMT
Tradename SIPEX
Package-Case SC-74A, SOT-753
Operating-Temperature -40°C ~ 85°C
Mounting-Type Surface Mount
Output-Type Adjustable
Supplier-Device-Package SOT-23-5
Voltage-Input 2.5 V ~ 16 V
Number-of-Outputs 1 Output
Current-Output 150mA
Voltage-Output Adjustable
Regulator-Topology Positive Adjustable
Voltage-Dropout-Typical 0.21V @ 150mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Output-Voltage Adj
Input-Voltage-MAX 16 V
Output-Current 150 mA
Input-Voltage-MIN 2.5 V
Load-Regulation 0.1 %
Voltage-Regulation-Accuracy 1 %
Package-Case SOT-23-5
Dropout-Voltage-Max 350 mv
Line-Regulation 0.03 %/V
Power Supply Ripple Rejection (PSRR) 70 dB

Descriptions

LDO Regulator Pos 0.15A 5-Pin SOT-23 T/R
LDO Voltage Regulators 150mA LOW NOISE LDO

Wholesale SPX5205M5-L/TR IC REG LIN POS ADJ 150MA SOT23-5 MaxLinear, Inc. from china suppliers

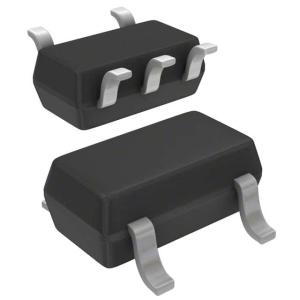

SPX5205M5-L/TR IC REG LIN POS ADJ 150MA SOT23-5 MaxLinear, Inc. Images
