BA50DD0WT IC REG LINEAR 5V 2A TO220FP-5 Rohm Semiconductor

Name: BA50DD0WT IC REG LINEAR 5V 2A TO220FP5 Rohm Semiconductor
Brand: Rohm Semiconductor
Price: 1 USD

Brand Name : Rohm Semiconductor

Model Number : BA50DD0WT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 25V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.7V @ 2A

Current - Output : 2A

Current - Quiescent (Iq) : 120 µA

Current - Supply (Max) : -

PSRR : 55dB (120Hz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, Over Voltage

Operating Temperature : -40°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-220-5 Full Pack

Supplier Device Package : TO-220FP-5

Contact Now

Product Details

Description

Standard Fixed Output LDO Regulators are low-saturation regulators, available for output s up to 2A / 1A. ROHM has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.

Features

1) Maximum output current : 2A (BA□□ DD0),1A(BA□□ CC0)
2) ± 1% highly accurate output voltage (BA□□ DD0)
3) Low saturation with PNP output
4) Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
5) Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
6) Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
7) TO220FP and HRP5 packaging (BA□□ DD0) ,TO220FP and TO252 packaging(BA□□ CC0)

Applications

Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device

Specifications

Attribute	Attribute Value
Manufacturer	ROHM
Product Category	Linear Voltage Regulators
Series	BA50DD0WT
Packaging	Tape & Reel (TR)
Unit-Weight	0.105822 oz
Mounting-Style	Through Hole
Package-Case	TO-220-5 Full Pack
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Through Hole
Output-Type	Fixed
Supplier-Device-Package	TO-220FP-5
Voltage-Input	Up to 25V
Number-of-Outputs	1 Output
Current-Output	2A
Voltage-Output	5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.45V @ 2A
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Pd-Power-Dissipation	2 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	5 V
Input-Voltage-MAX	25 V
Output-Current	2 A
Input-Voltage-MIN	3 V
Load-Regulation	200 mV
Voltage-Regulation-Accuracy	1 %
Package-Case	TO-220-5
Dropout-Voltage	0.3 V at 1 A
Dropout-Voltage-Max	700 mV
Line-Regulation	50 mV

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 2A TO-220FP-5

LDO Voltage Regulators 5 5V

Wholesale BA50DD0WT IC REG LINEAR 5V 2A TO220FP-5 Rohm Semiconductor from china suppliers

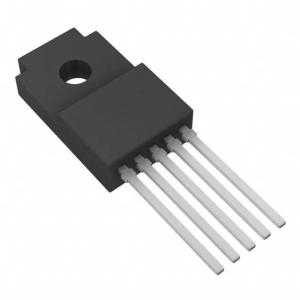

BA50DD0WT IC REG LINEAR 5V 2A TO220FP-5 Rohm Semiconductor Images
